PUSH AND PULL RJ45 SYSTEM
Push and Pull RJ45 system” is a ruggedized and lockable designed RJ45 connector system, ideal for pro audio, video and lighting network and digital signal transmission applications. The chassis connectors shaped to fit into standardized panels out of the entertainment industry.
- Ruggedized and lockable designed RJ45 system for harsh and demanding environments
- Ideal for pro audio, video and lighting network and digital signal
- Contacts are phosphor bronze plated with 50 micro inches hard gold
- Field terminable, simple termination design enable the installers easy to achieve Cat.6/ Cat.6A performance at file
- Termination capability: 22-26 AWG solid wire
- Durability: 750 mechanical cycles
- Plug end standard gasket OD 7.5mm option al gasket OD 5.5mm available upon request
Order Information

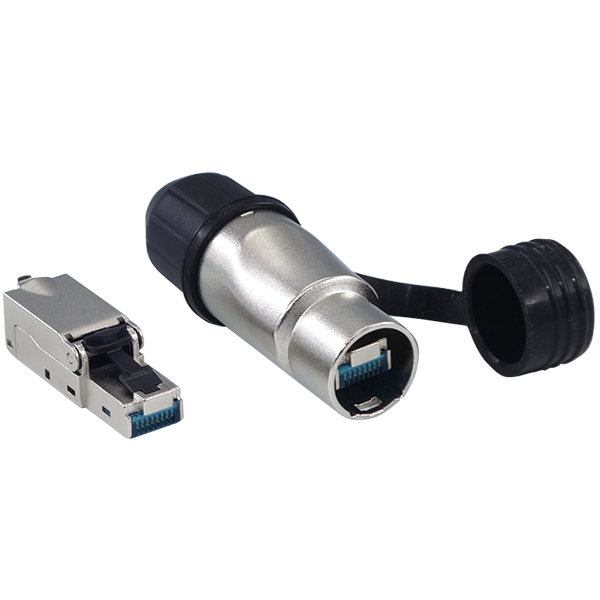

IKCQCPT01000
Push pull cable end, Cat.6A STP field Plug, IP66
Push pull cable end, Cat.6A STP field Plug, IP66

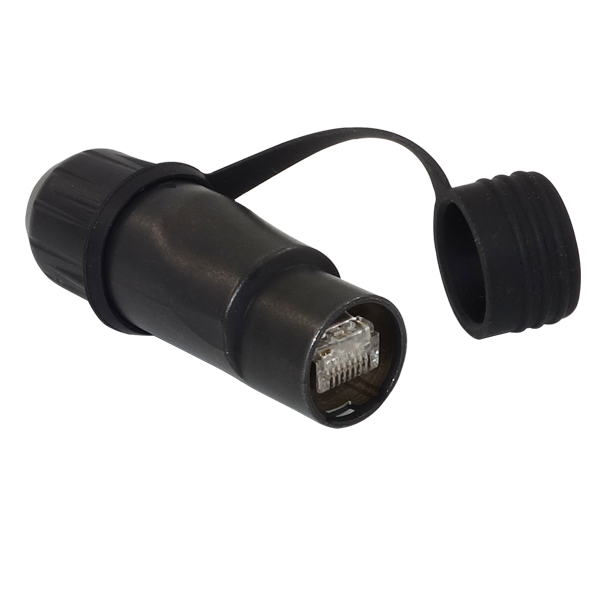

IKCQCPM01000
Push pull cable end, Cat.6A STP modular plug
Push pull cable end, Cat.6A STP modular plug

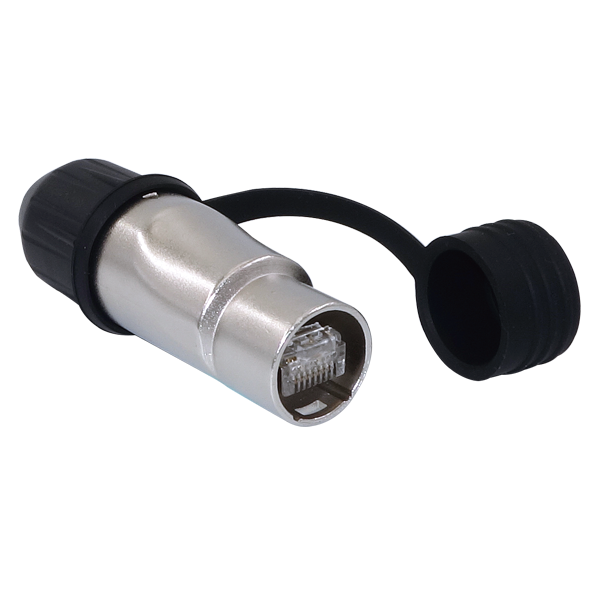

IKCQCPM02000
Push pull cable end, Cat.6A STP modular plug, IP66
Push pull cable end, Cat.6A STP modular plug, IP66

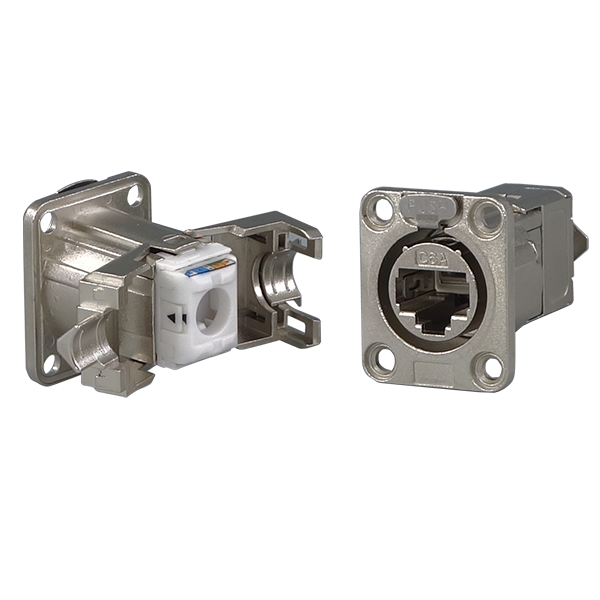

IKCQCSK01000
Push pull panel mount, Cat.6A STP Jack
Push pull panel mount, Cat.6A STP Jack
IKCQCSK02000
Push pull panel mount, Cat.6A STP Jack, IP66
Push pull panel mount, Cat.6A STP Jack, IP66
IKCQCSK01100
Push pull panel mount, Cat.6A STP Jack, 2 screw holes
Push pull panel mount, Cat.6A STP Jack, 2 screw holes
IKCQCSC01000
Push pull panel end Cat.6A STP In-line coupler, 4 mounting screw holes
Push pull panel end Cat.6A STP In-line coupler, 4 mounting screw holes
IKCQCSC01100
Push pull panel end Cat.6A STP In-line coupler, 2 mounting screw holes
Push pull panel end Cat.6A STP In-line coupler, 2 mounting screw holes
IKCQCSC02000
Push pull panel end Cat.6A STP In-line coupler, IP66
Push pull panel end Cat.6A STP In-line coupler, IP66
