Field Termination Connecters

Field Termination connector, known as a tool-free RJ45 connector, is highly used in industrial devices and appliances which are controlled using a connection to the IT network.

CAT.8.1/CLASS I
CAT.6 & 6A

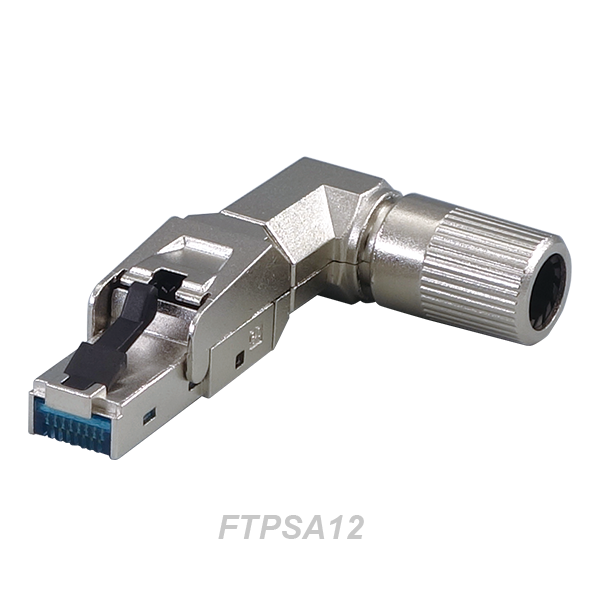

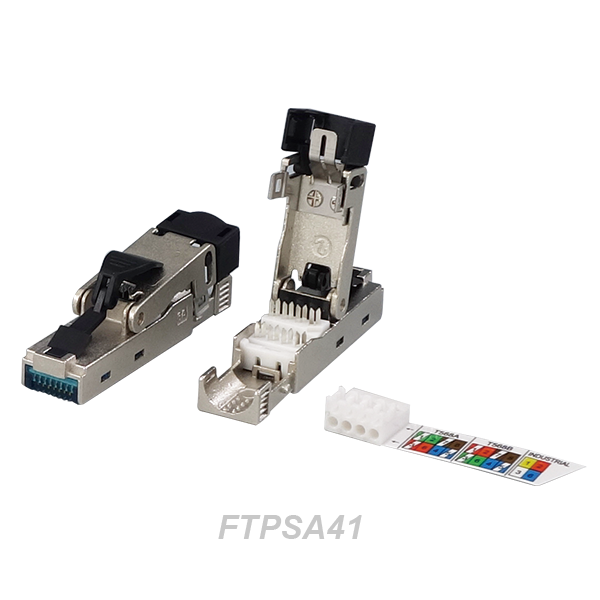

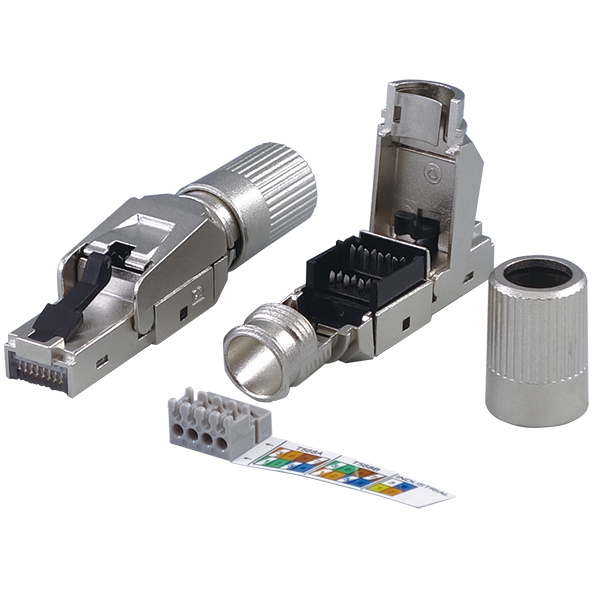

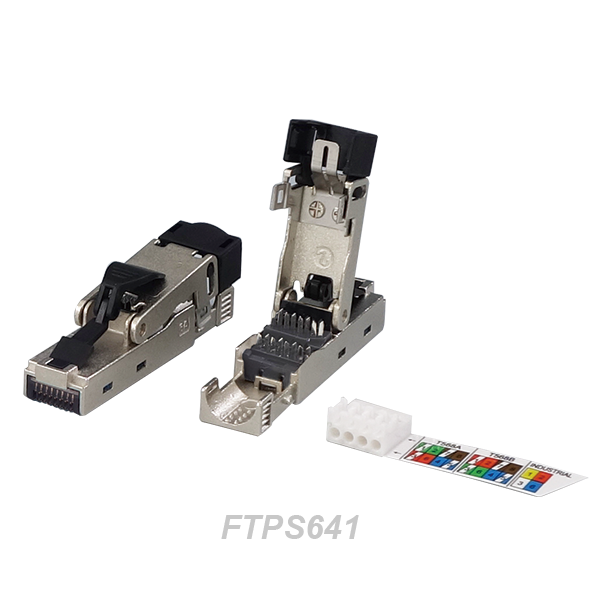

FIELD TERMINATION PLUG - CAT.8.1/CLASS I

Plug is made of fully sturdy metal housing. The plug is designed to be simple and easy to be terminated with the twisted cables at field. The IDC is designed to accommodate different diameter conductors up to 22AWG. Fully zinc alloy metal housing

Fully zinc alloy metal housing
Wiring label: TIA 568A/B & PNO
Protection category: IP20
Durability: 750 mechanical cycles
Termination capability: 22-26 AWG solid wire / 22-27 AWG stranded wire
Supporting cable diameter: 5.5-9mm
Force EC Class I verified
4PPoE Compliant in accordance with IEEE802.bt Type 4

Technical Document

Order Information

More Info

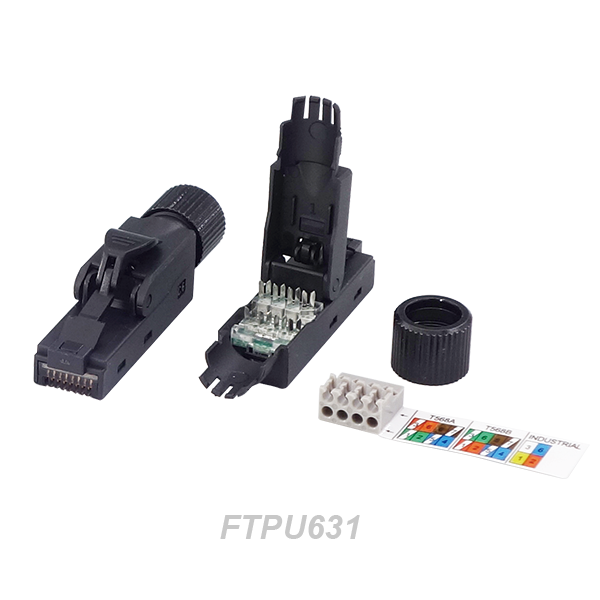

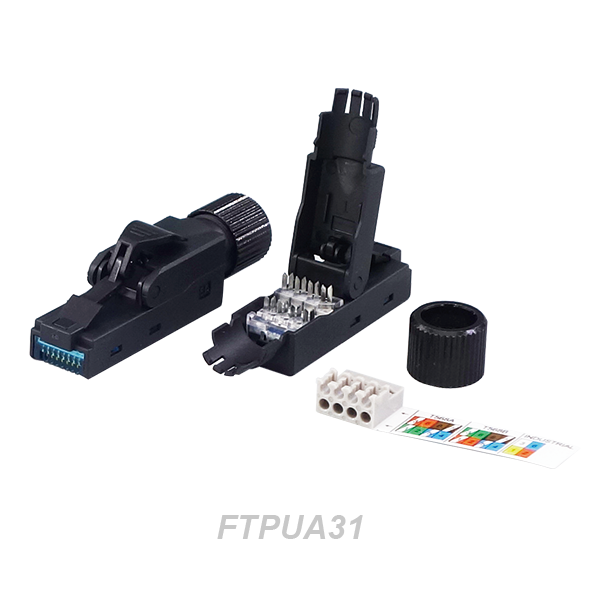

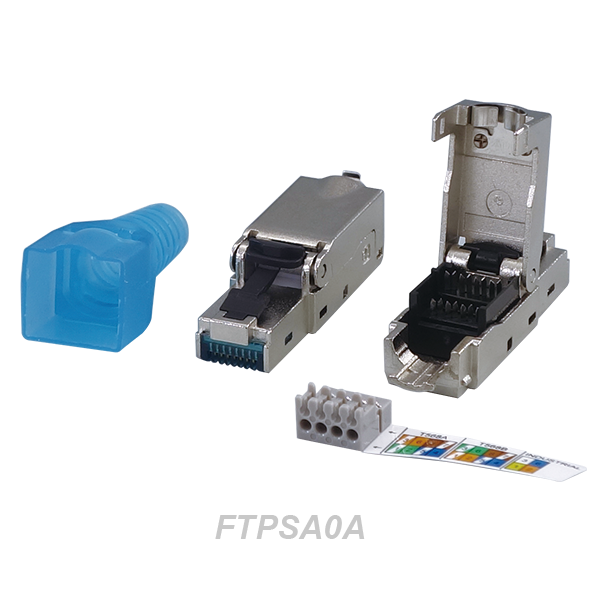

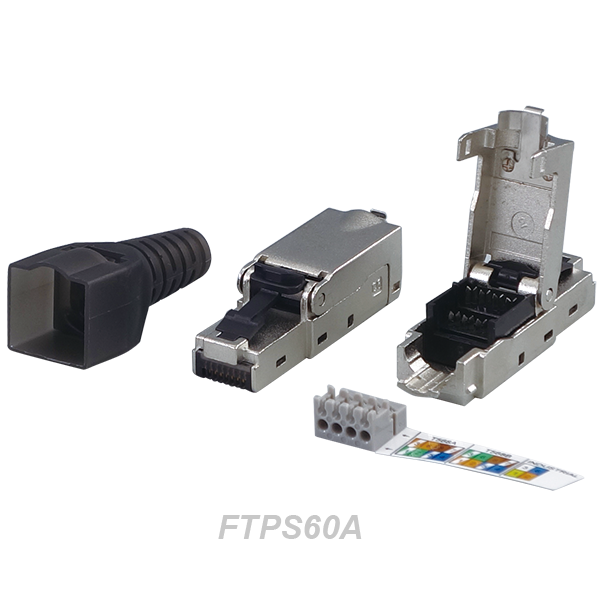

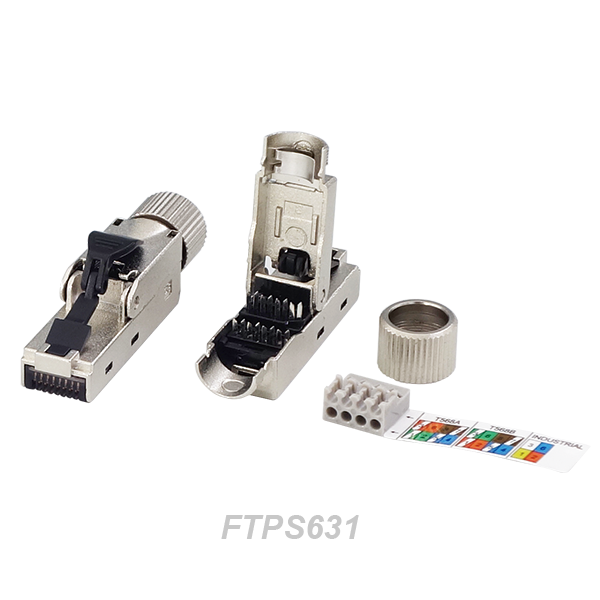

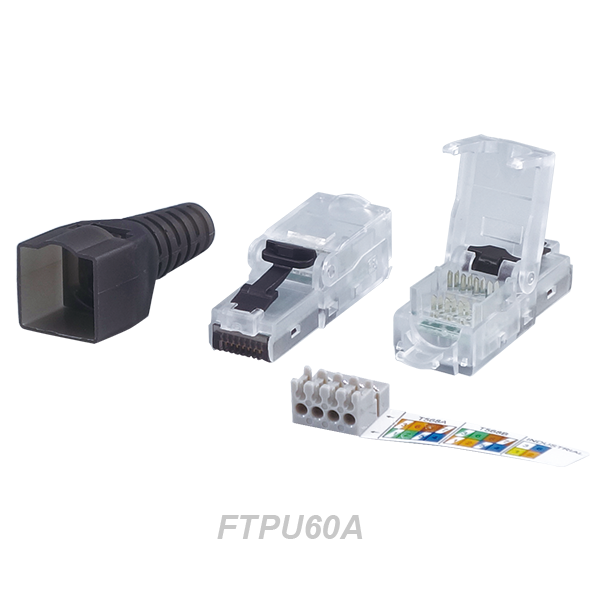

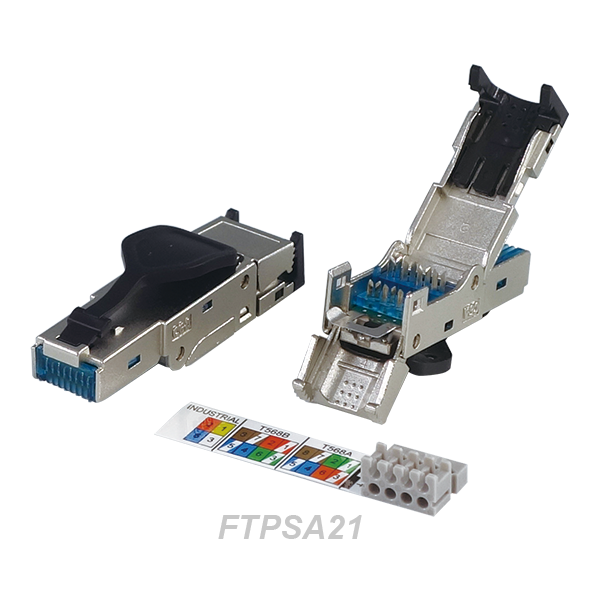

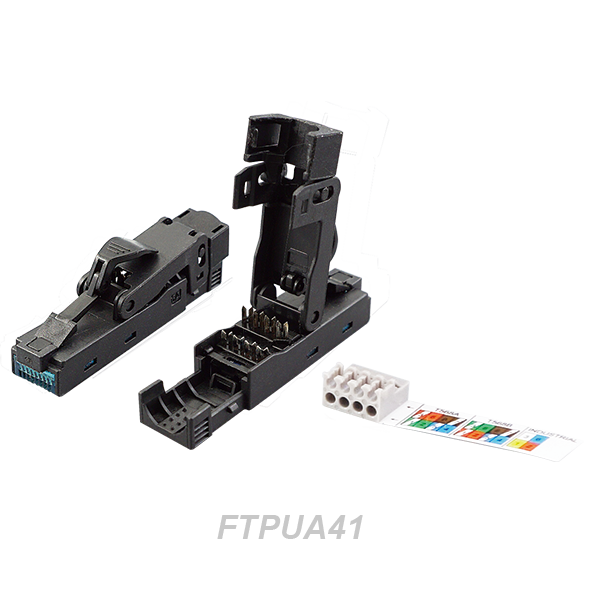

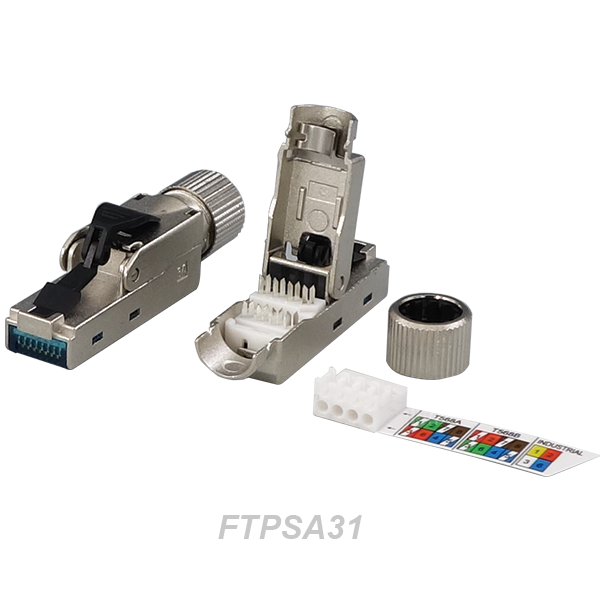

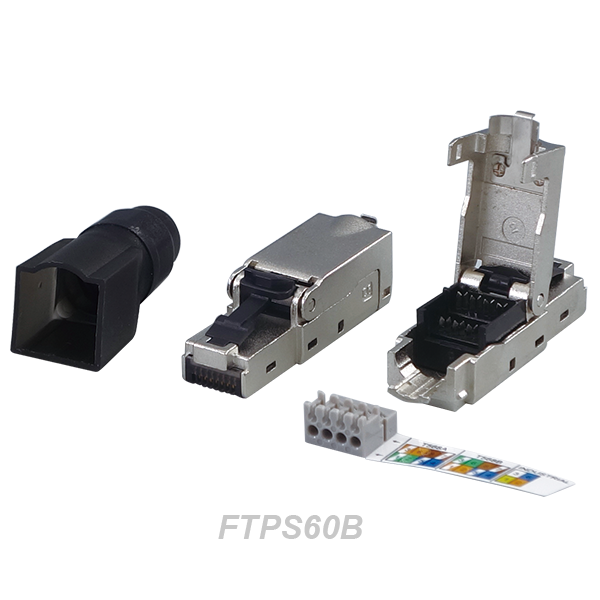

FIELD TERMINATION PLUG - CAT.6 & 6A

Field Termination Plug is designed to be simple to be terminated with the twisted cables at field. The IDC is design to accommodate different diameter conductors up to 22AWG Fully zinc alloy metal housing
